Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

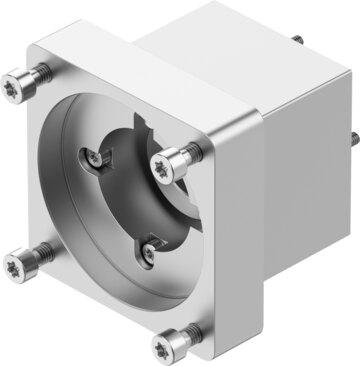

Reference imageConfirm configuration by manufacturer part number.
Festo
8217186
Axial kit EAMM-A-T42-80PA
This Festo industrial component, part number 8217186, features a nominal length of 69.1 mm, a product weight of 581 g, and a mass moment of inertia of 5.76 kgmm². Operating with an actuator interface code of T42 and a motor input interface code of 80PA, it transfers up to 10 Nm of torque at a maximum rotational speed of 8000 rpm in any mounting position. The assembly provides an IP40 degree of protection, complies with VDMA24364-B2-L LABS conformity and RoHS material restrictions, and functions within ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and relative air humidity levels of 0 to 95%. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217186
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217186.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 69.1 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.76 kgmm²
- Transferable torque
- 10 Nm
- Product weight
- 581 g
- Interface code, actuator
- T42
- Interface code, motor in
- 80PA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8217186. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
