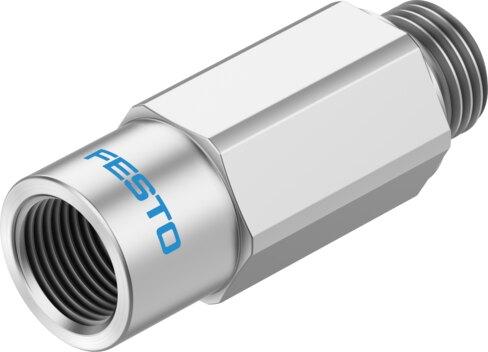

Reference imageConfirm configuration by manufacturer part number.
Festo
8217204
Vacuum security valve ISV-1/8-F1A
The Festo industrial component, part number 8217204, features a G1/8 size, a screw-in mounting type, and a product weight of 9 g with any mounting position. It operates within a pressure range of -95 kPa to 0 kPa, supports an ejector pulse of 8 bar, and delivers a required suction rate of 2 l/min at -0.5 bar using compressed air according to ISO 8573-1:2010 [7:-:-]. Constructed with a wrought aluminum alloy housing, stainless steel mesh filter, high-alloy steel spring, and POM float, this unit exhibits moderate corrosion stress resistance (CRC 2) and meets VDMA24364-B1/B2-L LABS conformity for battery production suitability with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217204
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217204.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- G1/8
- Ejector pulse suitability
- 8 MPa | 8 bar
- Mounting position
- Any
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar
- Required suction rate at -0.5 bar
- 2 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 9 g
- Type of mounting
- Screw-in
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Material of spring
- High-alloy steel
- Compressed air lter material
- Wrought aluminum alloy | Stainless steel mesh
- Housing material
- Wrought aluminum alloy
- Hollow bolt material
- Wrought aluminum alloy
- Float material
- POM
