Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

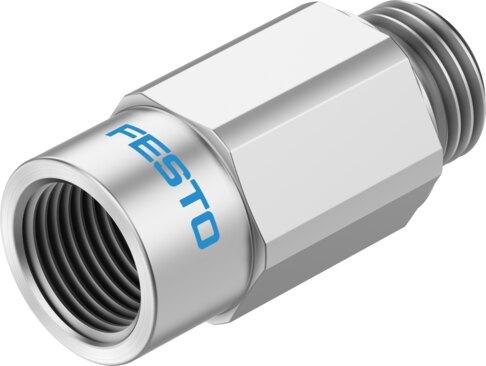

Reference imageConfirm configuration by manufacturer part number.
Festo
8217205
Vacuum security valve ISV-1/4-F1A
The Festo industrial component, part number 8217205, is an individual part featuring G1/4 pneumatic connections for both connection 1 and connection 2, operating within a pressure range of -95 kPa to 0 kPa and supporting an ejector pulse up to 8 bar. Weighing 16 g, the unit incorporates a wrought aluminum alloy housing, hollow bolt, and compressed air filter material alongside a stainless steel mesh, high-alloy steel spring, and POM float. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] at ambient temperatures from -10 °C to 60 °C, delivers a required suction rate of 1.6 l/min at -0.5 bar, and maintains a corrosion resistance class of 2 with VDMA24364-B1/B2-L LABS conformity and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217205
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217205.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- G1/4
- Ejector pulse suitability
- 8 MPa | 8 bar
- Mounting position
- Any
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar
- Required suction rate at -0.5 bar
- 1.6 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 16 g
- Type of mounting
- Screw-in
- Pneumatic connection 1
- G1/4
- Pneumatic connection 2
- G1/4
- Material of spring
- High-alloy steel
- Compressed air lter material
- Wrought aluminum alloy | Stainless steel mesh
- Housing material
- Wrought aluminum alloy
- Hollow bolt material
- Wrought aluminum alloy
- Float material
- POM
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8217205. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
