Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

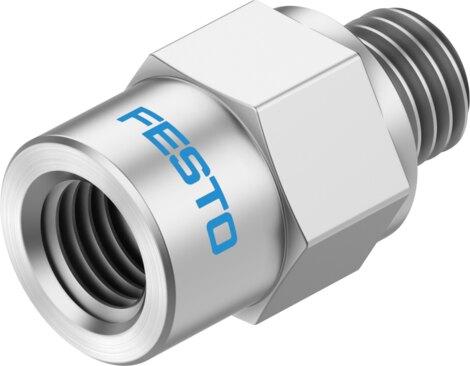

Reference imageConfirm configuration by manufacturer part number.
Festo
8217206
Vacuum security valve ISV-M5-F1A
The Festo part number 8217206 is an M5 industrial component weighing 4 g with screw-in mounting and any mounting position. It operates within a -95 kPa to 0 kPa pressure range, provides a required suction rate of 1 l/min at -0.5 bar, and handles ejector pulse suitability up to 8 MPa using compressed air as per ISO 8573-1:2010 [7:-:-]. Featuring a high-alloy steel housing, sintered bronze compressed air filter material, and CRC 2 moderate corrosion stress resistance, this unit includes VDMA24364-B1/B2-L LABS conformity and suitability for the production of Li-ion batteries with reduced Cu/Zn/Ni values (F1a) across ambient temperatures of -10 °C to 60 °C via M5 pneumatic connections 1 and 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217206
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217206.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M5
- Ejector pulse suitability
- 8 MPa | 8 bar
- Mounting position
- Any
- Operating pressure
- -95 kPa...0 kPa | -0.95 bar...0 bar
- Required suction rate at -0.5 bar
- 1 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 4 g
- Type of mounting
- Screw-in
- Pneumatic connection 1
- M5
- Pneumatic connection 2
- M5
- Compressed air lter material
- Sintered bronze
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8217206. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
