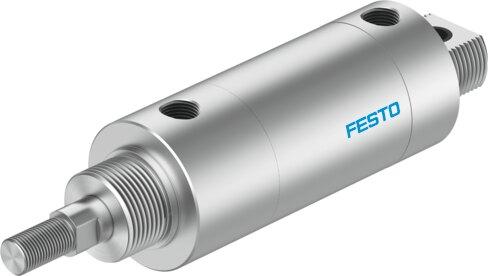

Reference imageConfirm configuration by manufacturer part number.
Festo
8217846
Round cylinder DPRA-N-1 1/16"-3-NGP4-N
Engineered with a 3-inch stroke and a 1 1/16-inch piston diameter, this Festo part number 8217846 double-acting industrial component features a round piston rod with a 5/16-24 UNF-2A external thread and 1/8 NPT pneumatic connections. The unit operates within a pressure range of 9.99 psi to 150 psi on compressed air compliant with ISO 8573-1:2010 [7:4:4], supporting ambient temperatures from -40 °F to 300 °F utilizing NBR seals and requiring oil lubrication for continued use. Constructed with a piston, piston rod, and cylinder barrel design with no cushioning or position sensing, it exhibits a CRC rating of 1 for low corrosion stress and weighs 0.44 lb. Submit the exact part number, quantity, and application requirements to receive an RFQ for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217846
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217846.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 in
- Piston diameter
- 1 1/16"
- Piston rod thread
- 5/16-24 UNF-2A
- Cushioning
- No cushioning
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- None
- Protection against torsion/guide
- Round piston rod
- Operating pressure
- 9.99 psi...150 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -40 °F...300 °F
- Product weight
- 0.44 lb
- Pneumatic connection
- 1/8 NPT
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
