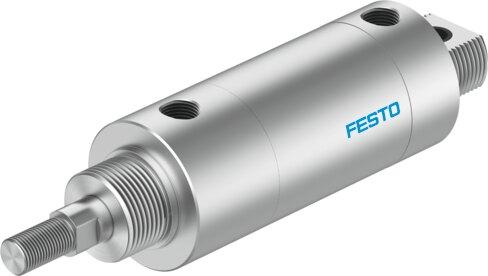

Reference imageConfirm configuration by manufacturer part number.
Festo
8217857
Round cylinder DPRA-N-1 1/4"-3-NGP4-N
The Festo 8217857 is a double-acting industrial component featuring a 3-inch stroke, a 1 1/4-inch piston diameter, and a 7/16-20 UNF-2A external piston rod thread with a round piston rod for torsion protection. Built with a piston, piston rod, and cylinder barrel, this un-cushioned unit operates at pressures ranging from 9.99 psi to 150 psi using compressed air compliant with ISO 8573-1:2010 [7:4:4], and functions within an ambient temperature range of -40 °F to 300 °F. It incorporates NBR seals, a 1/8 NPT pneumatic connection, RoHS-compliant materials, and a VDMA24364 Zone III LABS conformity with a CRC rating of 1, allowing for any mounting position and optional oil lubrication. Please submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217857
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217857.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 3 in
- Piston diameter
- 1 1/4"
- Piston rod thread
- 7/16-20 UNF-2A
- Cushioning
- No cushioning
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- None
- Protection against torsion/guide
- Round piston rod
- Operating pressure
- 9.99 psi...150 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -40 °F...300 °F
- Product weight
- 0.74 lb
- Pneumatic connection
- 1/8 NPT
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
