Festo
8217891

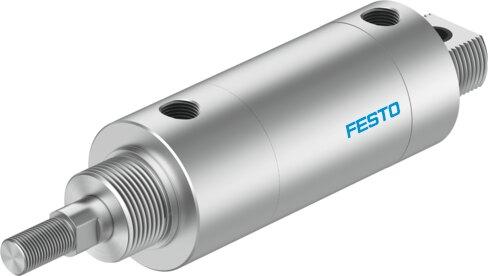

Round cylinder DPRA-N-2"-1-NGP4-N
This Festo industrial component, part number 8217891, is a double-acting pneumatic cylinder featuring a 2-inch piston diameter, a 1-inch stroke, and a round piston rod with a 1/2-20 UNF-2A external thread. Operating at pressures ranging from 9.99 psi to 150 psi, the unit utilizes compressed air per ISO 8573-1:2010 [7:4:4] and accommodates ambient temperatures between -40 °F and 300 °F without cushioning or position sensing. Constructed with NBR seals, a 1/4 NPT pneumatic connection, and RoHS-compliant materials, the 1.43 lb assembly supports any mounting position and permits oil lubrication. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8217891
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8217891.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 in
- Piston diameter
- 2"
- Piston rod thread
- 1/2-20 UNF-2A
- Cushioning
- No cushioning
- Mounting position
- Any
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- None
- Protection against torsion/guide
- Round piston rod
- Operating pressure
- 9.99 psi...150 psi
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- -40 °F...300 °F
- Product weight
- 1.43 lb
- Pneumatic connection
- 1/4 NPT
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Piston rod material
- high-alloy stainless steel
- Material of cylinder barrel
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8217891. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
