Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

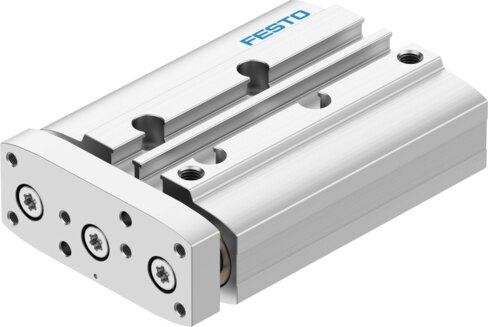

Reference imageConfirm configuration by manufacturer part number.
Festo
8218189
Guided drive DGRC-GF-12-100-PA
The Festo 8218189 industrial component is a double-acting drive unit featuring a yoke structural design, a 12 mm piston diameter, and a 100 mm stroke with an operating pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar). It utilizes elastic cushioning rings or pads at both ends, accommodates a maximum speed of 0.8 m/s, and incorporates a plain-bearing guide with a guide rod and yoke to provide protection against torsion, maintaining a distance of centre of gravity of payload to yoke plate xs of 50 mm. Operating with compressed air as per ISO 8573-1:2010 [7:4:4] within an ambient temperature range of -10 °C to 60 °C, this unit supports position sensing via proximity switch and is suitable for the production of Li-ion batteries with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8218189
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8218189.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 100 mm
- Piston diameter
- 12 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.07 Nm
- Max. force Fy
- 187 N
- Max. force Fy static
- 187 N
- Max. force Fz
- 187 N
- Max. force Fz static
- 187 N
- Max. torque Mx
- 3.55 Nm
- Max. static moment Mx
- 3.55 Nm
- Max. torque My
- 3.32 Nm
- Max. static moment My
- 3.32 Nm
- Max. torque Mz
- 3.32 Nm
- Max. static moment Mz
- 3.32 Nm
- Max. permissible torque load Mx as a function of the stroke
- 0.4 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8218189. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
