Name: Festo 8218199 Guided drive DGRC-GF-20-25-PA
Brand: Festo

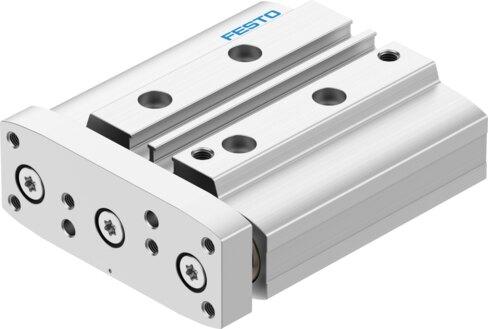

Guided drive DGRC-GF-20-25-PA

The Festo part number 8218199 is a double-acting industrial guide drive unit featuring a 20 mm piston diameter and a 25 mm stroke, utilizing a plain-bearing guide and a guide rod with a yoke to prevent torsion. Operating at pressures from 0.2 MPa to 1 MPa (2 bar to 10 bar) with compressed air conforming to ISO 8573-1:2010 [7:4:4], the unit achieves a maximum speed of 0.8 m/s while incorporating elastic cushioning rings or pads at both ends for an end-position impact energy of 0.2 Nm. Position sensing is enabled via a proximity switch, and the structural design supports any mounting position within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8218199
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8218199.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 50 mm
Stroke: 25 mm
Piston diameter: 20 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.2 Nm
Max. force Fy: 487.2 N
Max. force Fy static: 487.2 N
Max. force Fz: 487.2 N
Max. force Fz static: 487.2 N
Max. torque Mx: 13.15 Nm
Max. static moment Mx: 13.15 Nm
Max. torque My: 6.82 Nm
Max. static moment My: 6.82 Nm
Max. torque Mz: 6.82 Nm
Max. static moment Mz: 6.82 Nm
Max. permissible torque load Mx as a function of the stroke: 2.72 Nm
