Festo
8218200

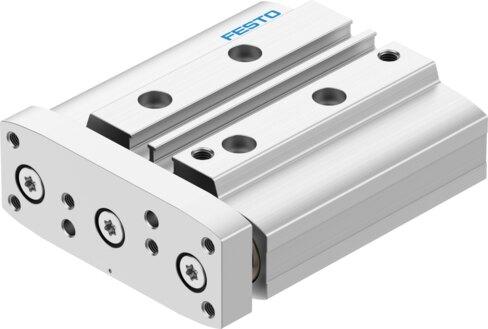

Guided drive DGRC-GF-20-30-PA
The Festo part number 8218200 is a double-acting industrial drive unit featuring a 20 mm piston diameter, a 30 mm stroke, and a yoke drive mode with a plain-bearing guide and guide rod. Designed with elastic cushioning rings or pads at both ends, this component operates within a pressure range of 0.2 MPa to 1 MPa (2 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:4:4] at a maximum speed of 0.8 m/s. It accommodates any mounting position, allows position sensing via proximity switch, and includes VDMA24364-B1/B2-L LABS conformity while being suitable for Li-ion battery production with reduced Cu/Zn/Ni values. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8218200
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8218200.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 30 mm
- Piston diameter
- 20 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.2 Nm
- Max. force Fy
- 487.2 N
- Max. force Fy static
- 487.2 N
- Max. force Fz
- 487.2 N
- Max. force Fz static
- 487.2 N
- Max. torque Mx
- 13.15 Nm
- Max. static moment Mx
- 13.15 Nm
- Max. torque My
- 6.82 Nm
- Max. static moment My
- 6.82 Nm
- Max. torque Mz
- 6.82 Nm
- Max. static moment Mz
- 6.82 Nm
- Max. permissible torque load Mx as a function of the stroke
- 2.52 Nm
