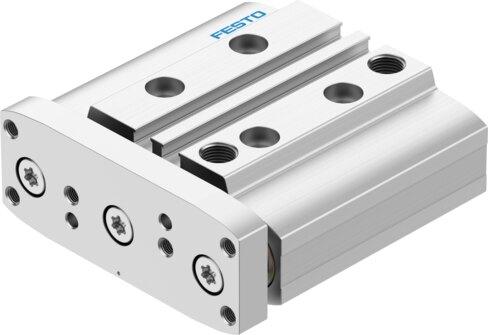

Reference imageConfirm configuration by manufacturer part number.
Festo
8218210
Guided drive DGRC-GF-25-80-PA
The Festo 8218210 is a double-acting industrial drive unit featuring a yoke structural design with a 25 mm piston diameter, an 80 mm stroke, and a plain-bearing guide. It operates at pressures ranging from 0.15 MPa to 1 MPa (1.5 bar to 10 bar) with a maximum speed of 0.8 m/s, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] and incorporating elastic cushioning rings at both ends. Designed with a guide rod and yoke for torsion protection, the component accommodates a 50 mm distance from the payload center of gravity to the yoke plate and enables position sensing via proximity switch within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8218210
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8218210.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 80 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.3 Nm
- Max. force Fy
- 663 N
- Max. force Fy static
- 663 N
- Max. force Fz
- 663 N
- Max. force Fz static
- 663 N
- Max. torque Mx
- 21.22 Nm
- Max. static moment Mx
- 21.22 Nm
- Max. torque My
- 18.23 Nm
- Max. static moment My
- 18.23 Nm
- Max. torque Mz
- 18.23 Nm
- Max. static moment Mz
- 18.23 Nm
- Max. permissible torque load Mx as a function of the stroke
- 3.83 Nm
