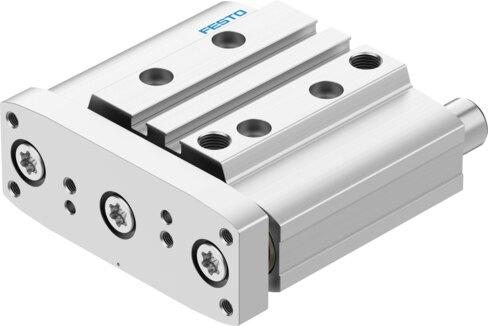

Name: Festo 8218218 Guided drive DGRC-GF-32-100-PA
Brand: Festo

Guided drive DGRC-GF-32-100-PA

The Festo part number 8218218 is a double-acting industrial drive unit featuring a 32 mm piston diameter, a 100 mm stroke, and a yoke operating mode with a plain-bearing guide rod. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] across an operating pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar), achieving a maximum speed of 0.8 m/s with elastic cushioning rings at both ends. Designed with a centre of gravity of the payload to the yoke plate xs of 50 mm, it includes position sensing via proximity switch, allows oil lubrication, and exhibits a corrosion resistance class of CRC 0 with VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8218218
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8218218.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 50 mm
Stroke: 100 mm
Piston diameter: 32 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.15 MPa...1 MPa | 1.5 bar...10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.4 Nm
Max. force Fy: 989.7 N
Max. force Fy static: 989.7 N
Max. force Fz: 989.7 N
Max. force Fz static: 989.7 N
Max. torque Mx: 37.61 Nm
Max. static moment Mx: 37.61 Nm
Max. torque My: 29.19 Nm
Max. static moment My: 29.19 Nm
Max. torque Mz: 29.19 Nm
Max. static moment Mz: 29.19 Nm
Max. permissible torque load Mx as a function of the stroke: 6.17 Nm
