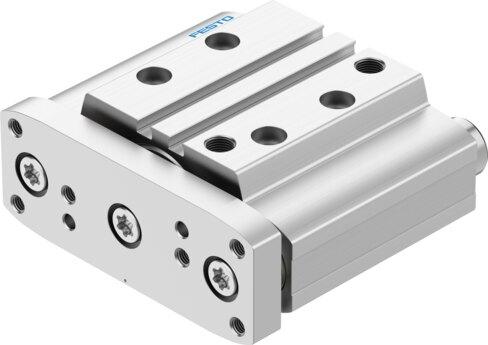

Reference imageConfirm configuration by manufacturer part number.
Festo
8218219
Guided drive DGRC-GF-40-25-PA
The Festo part number 8218219 is a double-acting industrial drive unit featuring a 40 mm piston diameter, a 25 mm stroke, and a yoke drive operating mode with a plain-bearing guide. It operates at pressures ranging from 0.15 MPa to 1 MPa (1.5 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:4:4], achieving a maximum speed of 0.8 m/s with 0.7 Nm impact energy in the end positions. Equipped with elastic cushioning rings or pads at both ends, this guide structural design includes a guide rod with a yoke, allows position sensing via a proximity switch, and supports any mounting position within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8218219
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8218219.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 25 mm
- Piston diameter
- 40 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.7 Nm
- Max. force Fy
- 1057 N
- Max. force Fy static
- 1057 N
- Max. force Fz
- 1057 N
- Max. force Fz static
- 1057 N
- Max. torque Mx
- 44.39 Nm
- Max. static moment Mx
- 44.39 Nm
- Max. torque My
- 21.67 Nm
- Max. static moment My
- 21.67 Nm
- Max. torque Mz
- 21.67 Nm
- Max. static moment Mz
- 21.67 Nm
- Max. permissible torque load Mx as a function of the stroke
- 10.95 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8218219. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
