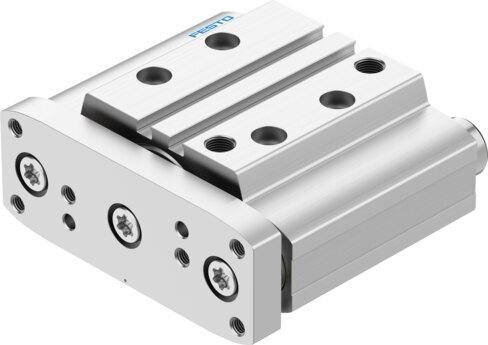

Reference imageConfirm configuration by manufacturer part number.
Festo
8218222
Guided drive DGRC-GF-40-100-PA
The Festo 8218222 is a double-acting industrial drive unit featuring a 40 mm piston diameter and a 100 mm stroke with a yoke operating mode. This component incorporates a plain-bearing guide, a guide rod with a yoke for torsion protection, elastic cushioning rings or pads at both ends, and position sensing via proximity switch. It operates within a pressure range of 0.15 MPa to 1 MPa and achieves a maximum speed of 0.8 m/s with a payload center of gravity distance of 50 mm to the yoke plate. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8218222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8218222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 100 mm
- Piston diameter
- 40 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.7 Nm
- Max. force Fy
- 1057 N
- Max. force Fy static
- 1057 N
- Max. force Fz
- 1057 N
- Max. force Fz static
- 1057 N
- Max. torque Mx
- 44.39 Nm
- Max. static moment Mx
- 44.39 Nm
- Max. torque My
- 31.18 Nm
- Max. static moment My
- 31.18 Nm
- Max. torque Mz
- 31.18 Nm
- Max. static moment Mz
- 31.18 Nm
- Max. permissible torque load Mx as a function of the stroke
- 7.23 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8218222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
