Festo
8219317

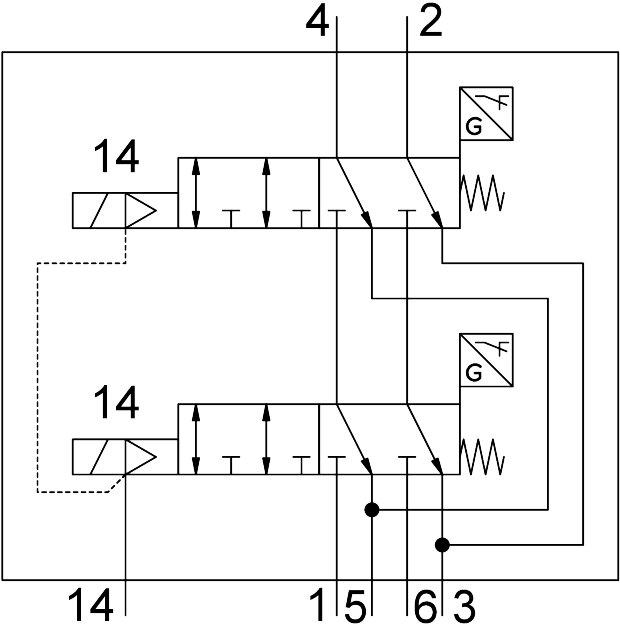

Control block VOFT-L14-T62-MZT2-G18-1M8RL-2APC
Festo Control block VOFT-L14-T62-MZT2-G18-1M8RL-2APC, part number 8219317, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8219317
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8219317.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Valve function
- 6/2-way valve, monostable, two-channel
- Actuation type
- Electrical
- Width
- 29 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 360 l/min
- Nominal ow rate standardized according to ISO 8778
- 400 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- EN 60947-5-2
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Measuring principle
- Inductive
- Lap
- Negative overlap
- Reverse polarity protection
- for all electrical connections
- Sensor reverse polarity protection
- For all electrical connections
- Note on forced dynamization
- Current information on this issue can be found in Technical Report V
- Switching position indication
- LED
