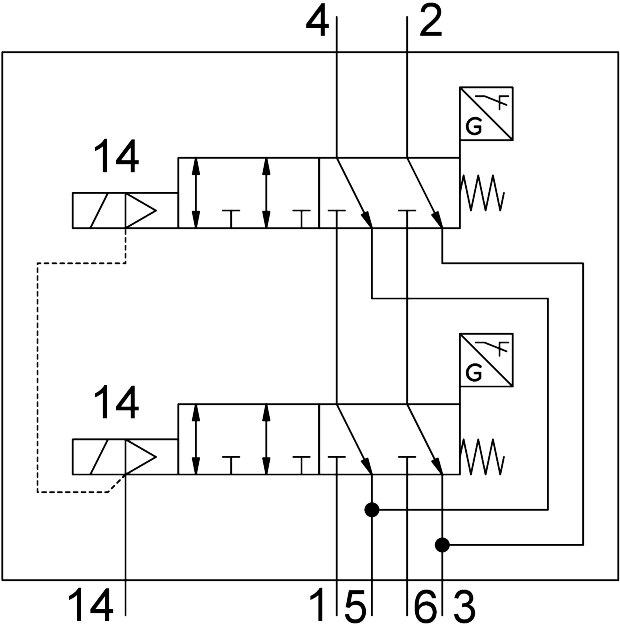

Reference imageConfirm configuration by manufacturer part number.
Festo
8219318
Control block VOFT-L14-T62-MZS-G18-1M8RL-2APC
The Festo 8219318 is an electrical, piloted 29 mm piston gate valve featuring a 6/2-way monostable two-channel valve function and a mechanical spring reset. It delivers a normal nominal flow rate of 360 l/min according to DIN 1343, an ISO 8778 nominal flow rate of 400 l/min, and operates at pressures from 0 MPa to 1 MPa (0 bar to 10 bar, 0 psi to 145 psi) on 24V DC. Built with IP65 protection, G1/8 pneumatic working ports, an external pilot air supply port, and a covered manual override, this component complies with EN 60947-5-2 alongside EU and UKCA EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8219318
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8219318.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 6/2-way valve, monostable, two-channel
- Actuation type
- Electrical
- Width
- 29 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 360 l/min
- Nominal ow rate standardized according to ISO 8778
- 400 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Exhaust air function
- Cannot be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- EN 60947-5-2
- Manual override
- Covered
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Measuring principle
- Inductive
- Lap
- Negative overlap
- Reverse polarity protection
- for all electrical connections
- Sensor reverse polarity protection
- For all electrical connections
- Note on forced dynamization
- Current information on this issue can be found in Technical Report V
- Switching position indication
- LED
