Festo
8219830
Motor cable NEBM-SF1W31-E-1-N-LE24
The Festo 8219830 is an industrial connecting cable weighing 300 g, designed to connect field devices such as sensors and actuators to controllers. Conforming to DIN 47100, this shielded cable operates within a DC voltage range of 0 V to 50 V at a nominal 24 V DC, featuring a square, straight plug with 31 pins and snap-locking on the field device side, and an open-end connection with 24 occupied wires out of 24 on the control side, without a label holder. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8219830
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8219830.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100
- Intended use
- The connecting cable connects eld devices (sensors, actuators) with | controllers.
- Cable designation
- Without label holder
- Product weight
- 300 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1

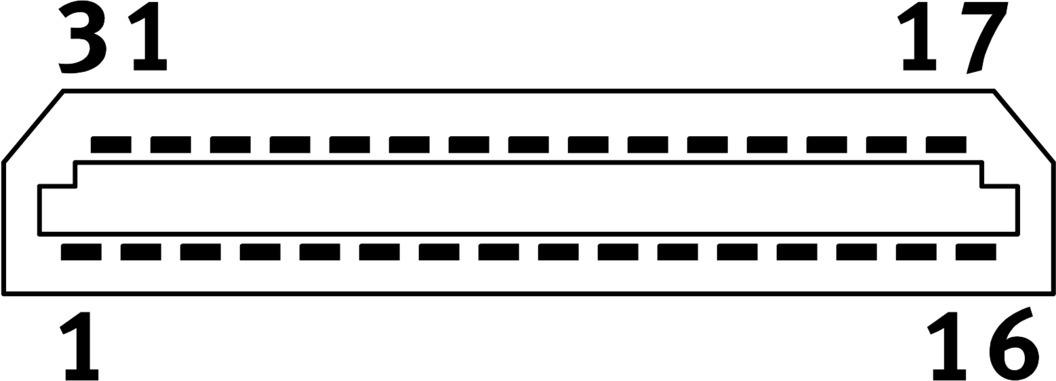

- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 24
- Electrical connection 2, occupied pins/wires
- 24
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 1 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 23.1 mm
- Bending radius, exible cable installation
- 33 mm
- Cable diameter
- 4.6 mm
- Cable design
- 4 x 0.25 mm² | 8 x 0.08 mm²
- Nominal conductor cross section
- AWG23 | AWG28
- Wire ends
- Wire ferrule
