Reference imageConfirm configuration by manufacturer part number.
Festo
8219831
Motor cable NEBM-SF1W31-E-3-N-LE24
This Festo industrial component, part number 8219831, connects field devices such as sensors and actuators with controllers within a DC operating voltage range of 0 V to 50 V at a nominal operating voltage of 24 V. The shielded cable conforms to standard DIN 47100 and features a product weight of 890 g without a label holder. Electrical connection 1 is on the field device side with a straight, 90-degree cable outlet, square plug design, connection pattern F1, 31 pins or wires, and snap-locking mounting, while electrical connection 2 is an open-ended cable with 24 out of 24 occupied pins or wires. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8219831
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8219831.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100
- Intended use
- The connecting cable connects eld devices (sensors, actuators) with | controllers.
- Cable designation
- Without label holder
- Product weight
- 890 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1

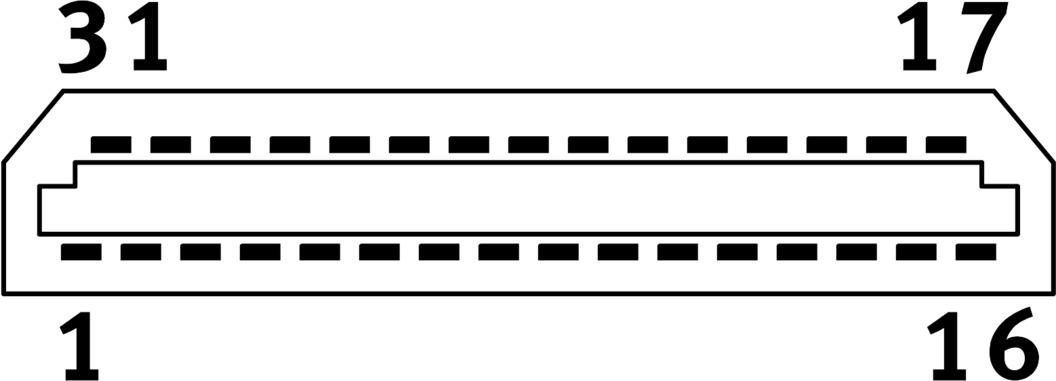

- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 24
- Electrical connection 2, occupied pins/wires
- 24
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 3 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 23.1 mm
- Bending radius, exible cable installation
- 33 mm
- Cable diameter
- 4.6 mm
- Cable design
- 4 x 0.25 mm² | 8 x 0.08 mm²
- Nominal conductor cross section
- AWG23 | AWG28
- Wire ends
- Wire ferrule
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8219831. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
