Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

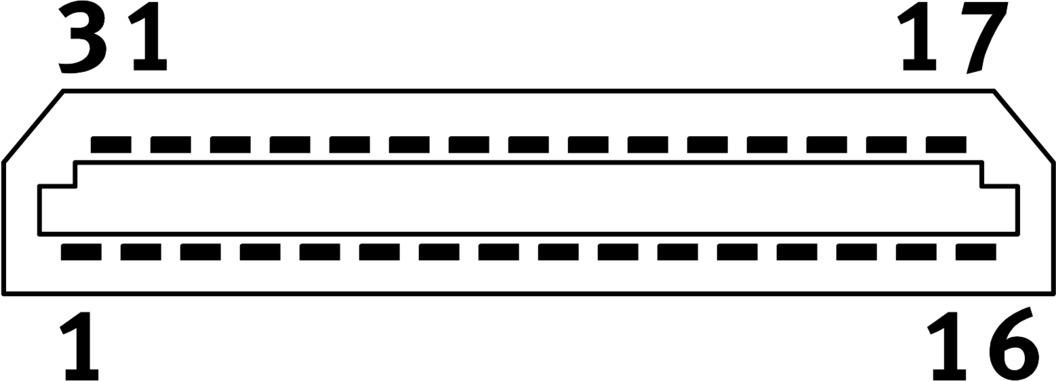

Reference imageConfirm configuration by manufacturer part number.
Festo
8219832
Motor cable NEBM-SF1W31-E-5-N-LE24
Manufactured by Festo, part number 8219832 is an industrial connecting cable designed to link field devices such as sensors and actuators to controllers. This shielded component features a straight, 90-degree square plug connection with 31 pins utilizing connection pattern F1 and snap-locking mounting on the field device side, terminating in 24 occupied open-end wires on the control side conforming to DIN 47100. It operates within a DC voltage range of 0 V to 50 V with a nominal operating voltage of 24 DC, weighs 1480 g, and is supplied without a label holder. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8219832
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8219832.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- DIN 47100
- Intended use
- The connecting cable connects eld devices (sensors, actuators) with | controllers.
- Cable designation
- Without label holder
- Product weight
- 1480 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, information on cable outlet
- 90°
- Electrical connection 1, connection technology
- Connection pattern F1
- Electrical connection 1, number of pins/wires
- 31
- Electrical connection 1, type of mounting
- Snap-locking
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Open end
- Electrical connection 2, number of pins/wires
- 24
- Electrical connection 2, occupied pins/wires
- 24
- DC operating voltage range
- 0 V...50 V
- Nominal operating voltage DC
- 24 V
- Shield
- Yes
- Cable length
- 5 m
- Cable characteristic
- Suitable for energy chains
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 23.1 mm
- Bending radius, exible cable installation
- 33 mm
- Cable diameter
- 4.6 mm
- Cable design
- 4 x 0.25 mm² | 8 x 0.08 mm²
- Nominal conductor cross section
- AWG23 | AWG28
- Wire ends
- Wire ferrule
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8219832. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
