Festo
8220305
Solenoid coil VACF-B-B1-1
The Festo part number 8220305 is an electrical industrial component featuring a 24 V DC, 3.3 W coil with Class H insulation and an allowable voltage fluctuation of +/- 10%. Certified by c UL us - recognized (OL) under certificate UL MH18122 and conforming to IEC 61010-1, this 49 g device provides IP65 protection and operates within an ambient and medium temperature range of -20 °C to 60 °C, with block mounting restricted to -20 °C to 50 °C. It includes a 100% duty cycle, moderate corrosion resistance class (CRC) 2, VDMA24364-B1/B2-L LABS conformity, and an electrical connection via a 3-pin plug using circuit diagram type B as per EN 175301-803 secured with a central screw M3 for any mounting position. Please submit your exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8220305
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8220305.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1
- Duty cycle
- 100%
- Insulation class
- H
- Coil characteristics
- 24 V DC: 3.3 W
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH18122
- Restricted ambient and media temperature
- -20 - 50 °C | for block mounting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 49 g
- Electrical connection 1, connection type
- Plug

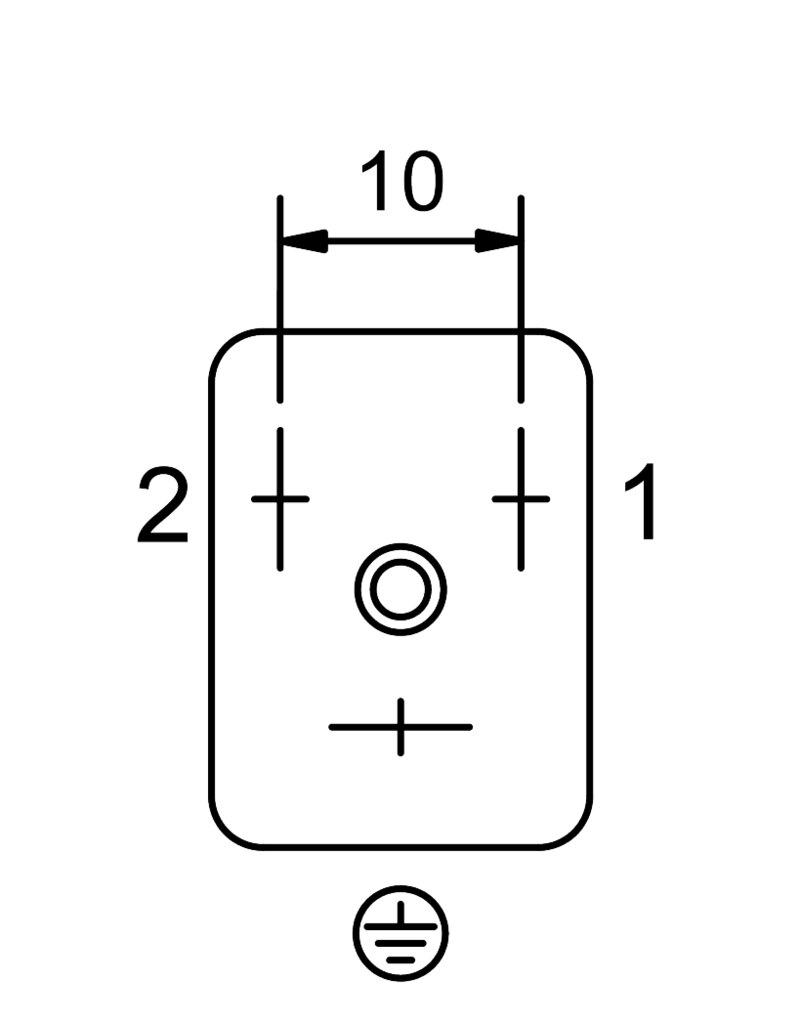

- Electrical connection 1, connection technology
- Circuit diagram type B as per EN 175301-803
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Central screw M3
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Housing material
- PA | Steel
- Solenoid coil material
- Copper | Steel | Thermoplast
- Material of winding
- Copper
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8220305. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
