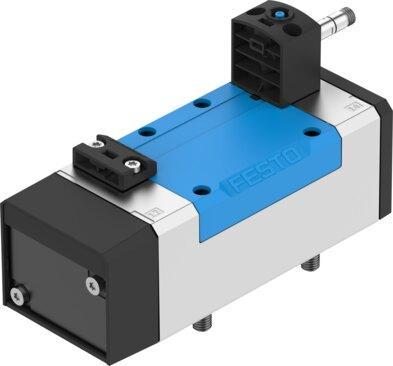

Reference imageConfirm configuration by manufacturer part number.
Festo
8221574
Solenoid valve MFH-5/2-D-3-FR-S-C
The Festo 8221574 is an electrical 5/2-way monostable industrial component featuring a piston gate valve structural design with a soft sealing principle and an ISO 5599-1 compliant size 3 sub-base or G1/2 pneumatic working port. Built with a 14.5 mm nominal width, a 65 mm width dimension, and a mechanical spring reset method, this unit delivers a normal nominal flow rate of 4500 l/min across an operating pressure range of -0.09 MPa to 1.6 MPa. It includes an IP65 degree of protection, adjustable exhaust air function, non-detenting or accessory-detenting manual override, and DNV-TAA000032X maritime classification certification while operating via a separately ordered solenoid coil. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8221574
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8221574.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 4500 l/min
- Pneumatic working port
- Sub-base, size 3 as per ISO 5599-1 | G1/2
- Operating voltage
- Via solenoid coil, to be ordered separately
- Operating pressure
- -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X
- Degree of protection
- IP65
- Nominal width
- 14.5 mm
- Width dimension
- 71 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 5599-1
- Manual override
- Detenting via accessory | Non-detenting
- ISO code
- 369
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...1 MPa
- Pilot pressure
- 3 bar...10 bar
- Suitability for vacuum
- Yes
- Switching time off
- 74 ms
- On switching time
- 33 ms
