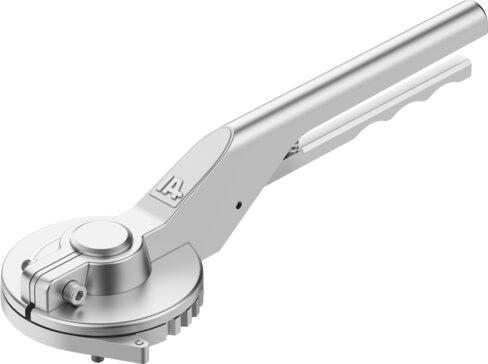

Reference imageConfirm configuration by manufacturer part number.
Festo
8222658
Hand lever VAOH-F11-F07-11-340-H9-RA10-AL
The Festo 8222658 is a manual lever industrial component featuring a die-cast aluminum housing with an epoxy coating in black, paired with high-alloy stainless steel accessories. This 700 g unit measures 340 mm in length with an 11 mm width across flats, incorporates RoHS compliant materials, and conforms to VDMA24364 Zone III LABS standards for any mounting position using screwed-on installation. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8222658
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8222658.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Length
- 340 mm
- Actuation type
- Manual
- Mounting position
- Any
- Width across ats
- 11 mm
- Structural design
- Lever
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Product weight
- 700 g
- Type of mounting
- Screwed on
- Color
- Black
- Note on materials
- RoHS compliant
- Housing material
- Die-cast aluminum, epoxy coated
- Accessories material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8222658. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
