8223994

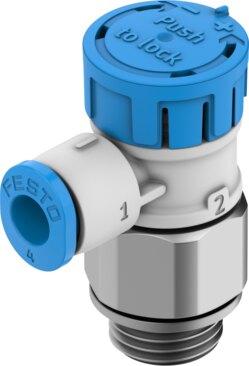

Name: Festo 8223994 One-way flow control valve VFOE-LE-T-G18-Q4-F1A
Brand: Festo

One-way flow control valve VFOE-LE-T-G18-Q4-F1A

The Festo industrial component part number 8223994 features an exhaust air flow control non-return function with a QS-4 pneumatic connection 1 and a G1/8 pneumatic connection 2, actuated manually via a rotary knob with a latch in any mounting position. Constructed with a PBT housing and a 13 mm width across flats, this unit operates across a temperature range of -10 °C to 60 °C and an operating pressure of 0.02 MPa to 1 MPa (0.2 bar to 10 bar / 2.9 psi to 145 psi) using compressed air as per ISO 8573-1:2010 [7:4:4]. It supports ATEX explosion prevention and protection for Zones 1, 2, 21, and 22, while adhering to specific metal variant exclusions. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8223994
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8223994.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Pneumatic connection 1: QS-4
Pneumatic connection 2: G1/8
Actuation type: Manual
Adjusting element: Rotary knob with latch
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 150 l/min
Standard nominal ow rate in non-return direction: 90 l/min...150 l/min
Ambient temperature: -10 °C...60 °C
Housing material: PBT
Explosion prevention and protection: Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Width across ats: 13 mm
Rotatability: 360 deg/continuous swiveling not permissible
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Operating pressure for entire temperature range: 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
Standard ow rate in ow control direction 6 -> 0 bar: 250 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 240 l/min...300 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8223994. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
