Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

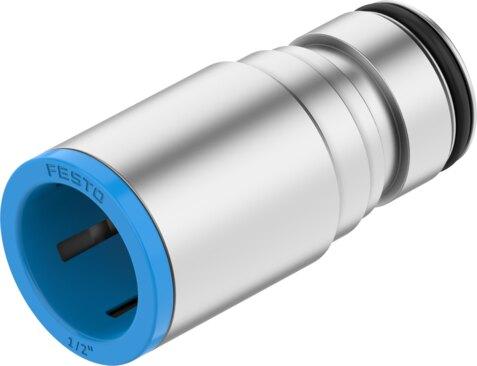

Reference imageConfirm configuration by manufacturer part number.
Festo
8225234
Cartridge NPQX-D-PC15-T12-P2
The Festo part number 8225234 is a standard straight industrial component featuring a 10 mm nominal width, a 25.4 mm tubing insertion depth, and a 20.8 g product weight with a blue releasing ring. Designed with a push-pull structural principle and an O-ring seal on the screwed plug, this unit operates within a pressure range of -0.095 MPa to 1 MPa (-0.95 bar to 10 bar, -13.775 psi to 145 psi) and an ambient temperature span of -5 °C to 60 °C using compressed air or inert gases. It incorporates a 15 mm cartridge pneumatic connection 1, a connection 2 for 1/2" outside diameter pneumatic tubing, mounting via retaining clamp in any position, and moderate corrosion resistance class (CRC) 2. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8225234
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8225234.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 10 mm
- Tubing insertion depth
- 25.4 mm
- Type of seal on screwed plug
- O-ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 2
- Structural design
- Push-pull principle
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Ambient temperature
- -5 °C...60 °C
- Product weight
- 20.8 g
- Type of mounting
- With retaining clamp
- Pneumatic connection 1
- Cartridge 15 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/2"
- Releasing ring color
- Blue
- Note on materials
- RoHS compliant
- Housing material
- High-alloy steel
- Releasing ring material
- PA-reinforced
- O-ring material
- HNBR
- Material of tubing seal
- HNBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8225234. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
