Festo
8225515

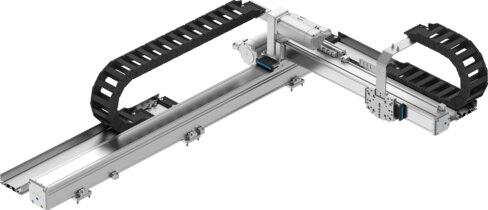

Cantilever system YXCE-2-D
The Festo 8225515 is a planar surface gantry system featuring electric actuator modules configured for horizontal mounting positions with a 100% duty cycle and a required mounting surface flatness of 0.1 mm/m. Constructed with an anodized aluminum adapter plate, PA-reinforced energy chain, and high-alloy stainless steel mounting brackets and consoles, this RoHS-compliant component conforms to VDMA24364 Zone III LABS/PWIS standards and maintains an IP20 protection rating across an ambient temperature range of 5 °C to 45 °C. The unit requires maintenance every 2500 km and operates within a 0 to 90% relative air humidity range while supporting storage temperatures from -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8225515
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8225515.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Planar surface gantry system | with electric actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP20
- Ambient temperature
- 5 °C...45 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum
- Material of mounting bracket
- high-alloy stainless steel
- Energy chain material
- PA-reinforced
- Console material
- high-alloy stainless steel
