Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

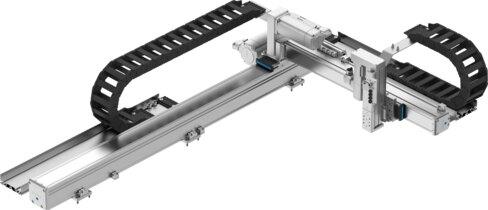

Reference imageConfirm configuration by manufacturer part number.
Festo
8225520
Cantilever system YXCA-2-D
The Festo 8225520 is a space portal system featuring a structural design with electric and pneumatic actuator modules intended for a horizontal mounting position with a required flatness of mounting surfaces of 0.1 mm/m. Constructed with an anodized aluminum adapter plate, high-alloy stainless steel mounting brackets and consoles, and PA-reinforced energy chain materials, the unit operates at a 100% duty cycle, maintains VDMA24364 Zone III LABS conformity, and complies with RoHS material standards. It is rated with an IP20 degree of protection, functions within an ambient temperature range of 5 °C to 45 °C, tolerates storage temperatures from -20 °C to 60 °C and relative air humidity from 0 to 90%, and requires maintenance every 2500 km. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8225520
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8225520.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Required atness of mounting surfaces
- 0.1 mm/m
- Mounting position
- Horizontal
- Structural design
- Space portal system | with electric and pneumatic actuator modules
- Duty cycle
- 100%
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP20
- Ambient temperature
- 5 °C...45 °C
- Maintenance interval
- 2500 km
- Note on materials
- RoHS compliant
- Adapter plate material
- Anodized aluminum
- Material of mounting bracket
- high-alloy stainless steel
- Energy chain material
- PA-reinforced
- Console material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8225520. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
