Festo
8225636

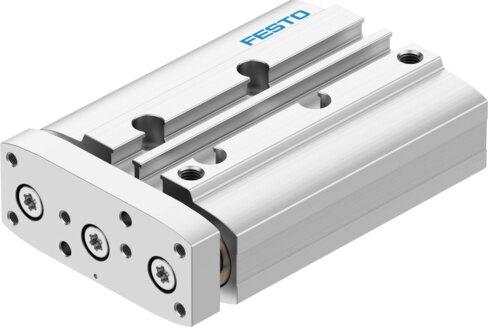

Guided drive DGRC-GF-12- -PA
The Festo 8225636 is a double-acting industrial component featuring a 12 mm piston diameter, a yoke drive unit operating mode, and a stroke length adjustable from 5 mm to 100 mm via a plain-bearing guide rod with yoke. Designed for compressed air operation conforming to ISO 8573-1:2010 [7:4:4] within a 0.2 MPa to 1 MPa pressure range, this unit incorporates elastic cushioning rings at both ends to manage 0.07 Nm of impact energy in the end positions at speeds up to 0.8 m/s. Position sensing is accomplished via a proximity switch, while the assembly functions across an ambient temperature range of -10 °C to 60 °C in any mounting position with a 50 mm distance of the centre of gravity of the payload to the yoke plate. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8225636
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8225636.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 5 mm...100 mm
- Piston diameter
- 12 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.2 MPa...1 MPa | 2 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.07 Nm
- Theoretical force at 6 bar, retracting
- 51 N
- Theoretical force at 6 bar, advancing
- 68 N
- Torsional backlash
- 0.065 deg
- Product weight
- 173.8 g...512.1 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Material of dynamic seals
- TPE-U(PU)
- End plate material
- Wrought aluminum alloy, anodized
- Guide rod material
- High-alloy steel
