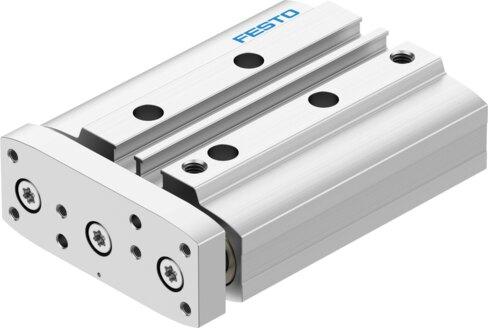

Name: Festo 8225637 Guided drive DGRC-GF-16- -PA
Brand: Festo

Guided drive DGRC-GF-16- -PA

The Festo part number 8225637 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a stroke length ranging from 5 mm to 100 mm, and a yoke drive unit operating mode with elastic cushioning rings or pads at both ends. This component operates on compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure of 0.2 MPa to 1 MPa (2 bar to 10 bar), incorporates a plain-bearing guide rod with a yoke for torsion protection, and accommodates position sensing via proximity switch. Designed for ambient temperatures between -10 °C and 60 °C, the unit achieves a maximum speed of 0.8 m/s, an impact energy of 0.15 Nm in the end positions, and a center of gravity distance of the payload to the yoke plate xs of 50 mm, while featuring suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8225637
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8225637.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Distance of centre of gravity of payload to yoke plate xs: 50 mm
Stroke: 5 mm...100 mm
Piston diameter: 16 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Guide: Plain-bearing guide
Structural design: Guide
Position sensing: Via proximity switch
Protection against torsion/guide: Guide rod with yoke
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Max. speed: 0.8 m/s
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.15 Nm
Theoretical force at 6 bar, retracting: 90 N
Theoretical force at 6 bar, advancing: 121 N
Torsional backlash: 0.065 deg
Product weight: 199.7 g...586.4 g
Pneumatic connection: M5
Note on materials: RoHS compliant
Cover material: Wrought aluminum alloy
Seals material: NBR
Material of dynamic seals: TPE-U(PU)
End plate material: Wrought aluminum alloy, anodized
Guide rod material: High-alloy steel
