Festo
8225640

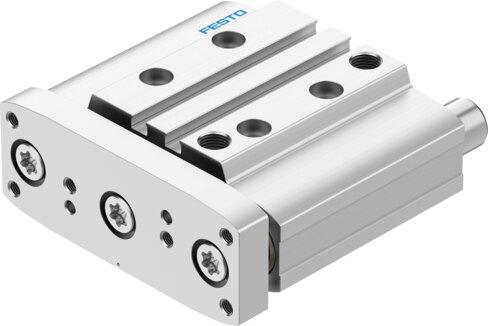

Guided drive DGRC-GF-32- -PA
The Festo 8225640 industrial component is a double-acting drive unit featuring a 32 mm piston diameter, a stroke range of 5 mm to 100 mm, and a plain-bearing guide with a guide rod and yoke for torsion protection. Operating at pressures from 0.15 MPa to 1 MPa (1.5 bar to 10 bar) with compressed air conforming to ISO 8573-1:2010 [7:4:4], the unit achieves a maximum speed of 0.8 m/s while utilizing elastic cushioning rings or pads at both ends to absorb 0.4 Nm of impact energy in the end positions. Designed with a yoke drive operating mode and a payload center of gravity distance to the yoke plate xs of 50 mm, it accommodates any mounting position, allows position sensing via proximity switch, and maintains VDMA24364-B1/B2-L LABS conformity for Li-ion battery production with reduced Cu/Zn/Ni values within an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8225640
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8225640.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Distance of centre of gravity of payload to yoke plate xs
- 50 mm
- Stroke
- 5 mm...100 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Max. speed
- 0.8 m/s
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.4 Nm
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 482 N
- Torsional backlash
- 0.045 deg
- Product weight
- 717.8 g...1565 g
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Material of dynamic seals
- TPE-U(PU)
- End plate material
- Wrought aluminum alloy, anodized
- Guide rod material
- High-alloy steel
