Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8226143
Motor cable NEBM-H17G12-FH-2.5-Q9N-R3LEG14

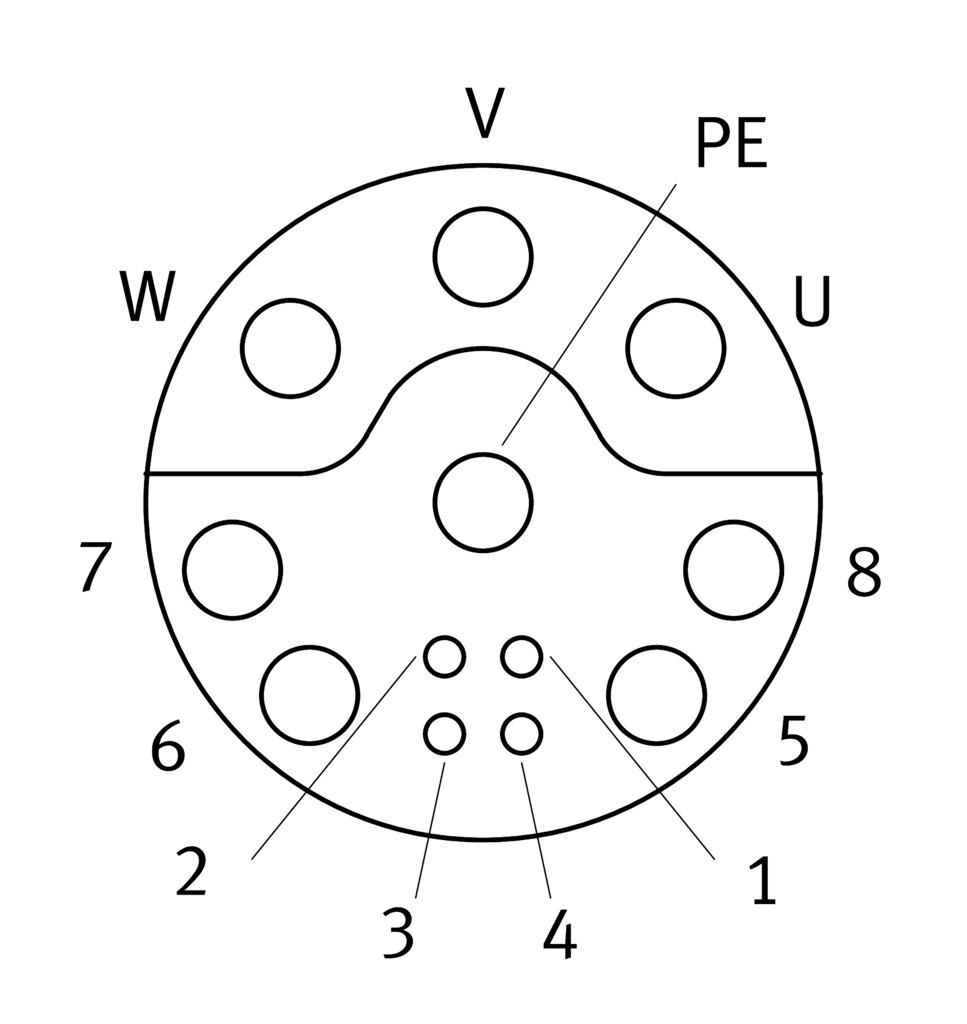

The Festo 8226143 is an industrial component conforming to EN 61984 with a product weight of 0.558 kg and a cable designation featuring no label holder. It connects a field device side featuring a straight, round M21x1 hybrid socket with 12 occupied screw-locked pins to a control side featuring a straight cable with RJ45 and open-end connections, 14 total pins, and 12 occupied pins. This component operates across a DC operating voltage range of 0 V to 850 V and an AC operating voltage range of 0 V to 630 V. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8226143
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8226143.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61984
- Cable designation
- Without label holder
- Product weight
- 0.558 kg
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Hybrid socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M21x1
- Electrical connection 1, number of pins/wires
- 12
- Electrical connection 1, occupied pins/wires
- 12
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45 and open end
- Electrical connection 2, number of pins/wires
- 14
- Electrical connection 2, occupied pins/wires
- 12
- Electrical connection 2, type of mounting
- Inserted
- DC operating voltage range
- 0 V...850 V
- Operating voltage range AC
- 0 V...630 V
- Current rating at 40° C
- 17.8 A
- Surge resistance
- 6 kV
- Shield
- Yes
- Cable length
- 2.5 m
- Cable characteristic
- suitable for use in the food industry
- Connector cable test conditions
- Test conditions on request
- Bending radius, xed cable installation
- 57.5 mm
- Cable diameter
- 11.5 mm
- Cable diameter tolerance
- ± 0.3 mm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8226143. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
