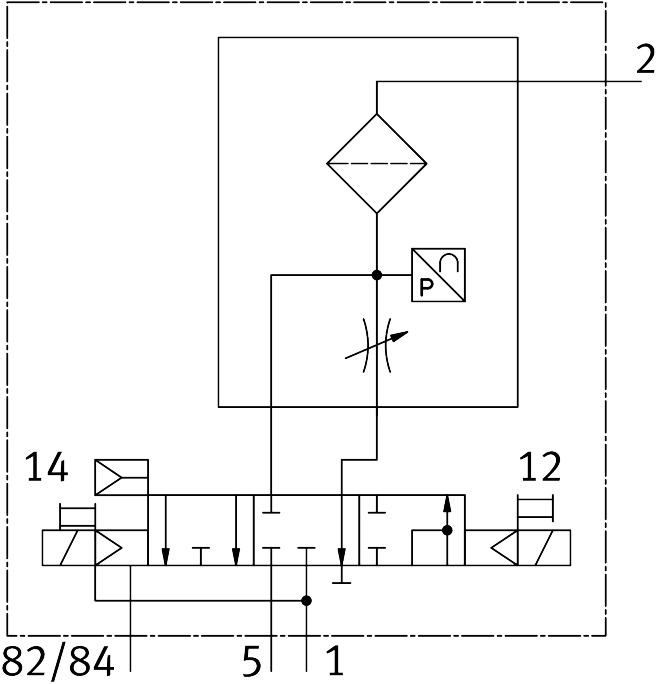

Reference imageConfirm configuration by manufacturer part number.
Festo
8227839
Manifold sub-base for vacuum VABX-A-S-VP-BH-VH
The Festo part number 8227839 is an electrical actuation industrial component featuring a 10 mm valve size, a length of 127.6 mm, and a width dimension of 12.55 mm with an open muffler construction type. It integrates multiple functions including an electric ejector pulse, flow control valve, pressure sensor, pressure transmitter, electric on-off valve, filter, and an electrical interlinking module, operating with a piloted control type and internal pilot air supply port. This unit provides internal diagnostic capabilities for load switch-off, electronics and sensors overvoltage, and electronics and sensors undervoltage, along with reverse polarity protection and a soft sealing principle. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8227839
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8227839.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12.55 mm
- Length
- 127.6 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Adjusting element
- Slotted screw
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Electronics/sensors undervoltage
- Max. no. of valve positions
- 1
- Grade of ltration
- 40 µm
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Pressure sensor | Pressure transmitter | Electric on-off valve | Filter | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 5/3 pressurized 1 to 2, 4 to 5 closed
- Max. no. of solenoid coils
- 2
- Compatible with
- Valve manifold VTUX-A-S
