Festo
8227840

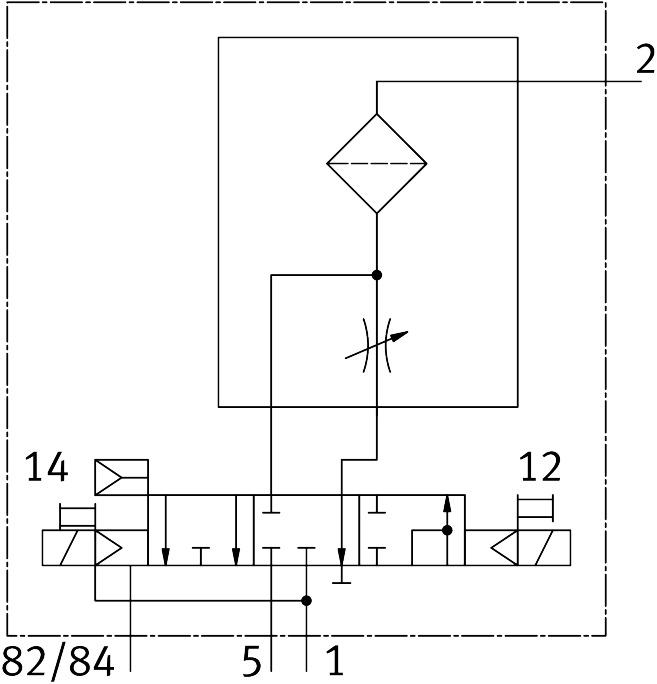

Manifold sub-base for vacuum VABX-A-P-VP-BH-VH
The Festo 8227840 is a 10 mm electrical industrial component featuring an open muffler construction type, soft sealing principle, and slotted screw adjusting element with a valve function of 5/3 pressurized 1 to 2, 4 to 5 closed. This piloted unit operates with an internal pilot air supply port, integrated electrical interlinking module, flow control valve, filter, electric on-off valve, and electric ejector pulse valve supporting a maximum of two solenoid coils and one valve position. Designed with reverse polarity protection, it accommodates any mounting position and complies with EN 60068-2-6 and FN 942017-4 vibration resistance alongside EN 60068-2-27 and FN 942017-5 shock resistance standards while remaining compatible with the VTUX-A-P valve manifold. Submit part number 8227840, required quantity, and application specifications to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8227840
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8227840.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 12.5 mm | 12.55 mm
- Length
- 127.6 mm
- Width dimension
- 12.55 mm
- Valve size
- 10 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Muffler construction type
- Open
- Actuation type
- Electrical
- Reverse polarity protection
- Yes
- Sealing principle
- Soft
- Mounting position
- Any
- Adjusting element
- Slotted screw
- Max. no. of valve positions
- 1
- Grade of ltration
- 40 µm
- Integrated function
- Ejector pulse, electric | Ejector pulse valve, electric | Flow control valve | Electric on-off valve | Filter | With electrical interlinking module
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Valve function
- 5/3 pressurized 1 to 2, 4 to 5 closed
- Max. no. of solenoid coils
- 2
- Compatible with
- Valve manifold VTUX-A-P
- Display type
- LED
- Signal status display
- Yellow LED, valve actuation
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar
- Nominal operating pressure
- 0.6 MPa
