Reference imageConfirm configuration by manufacturer part number.
Festo
8228650

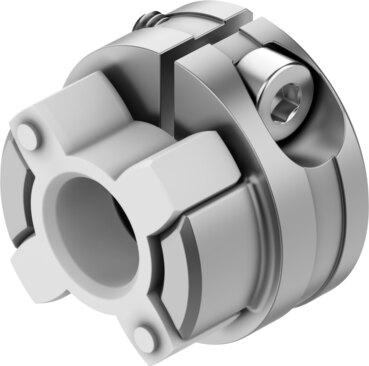

Coupling hub EAMC-H-15-7-GB8-8
The Festo industrial component, part number 8228650, features a size 15 design with an 8 mm holder diameter and a nominal length of 12.4 mm. Weighing 4 g, this RoHS-compliant part supports an ambient and storage temperature range of -25 °C to 60 °C, up to 95% relative air humidity, and VDMA24364-B2-L LABS conformity. It operates at a maximum rotational speed of 10000 rpm, delivers a transferable torque of 2 Nm, has a mass moment of inertia of 0.191 kgmm², and mounts in any position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228650
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228650.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 8 mm
- Size
- 15
- Nominal length
- 12.4 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 0.191 kgmm²
- Transferable torque
- 2 Nm
- Product weight
- 4 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8228650. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
