Festo
8228651

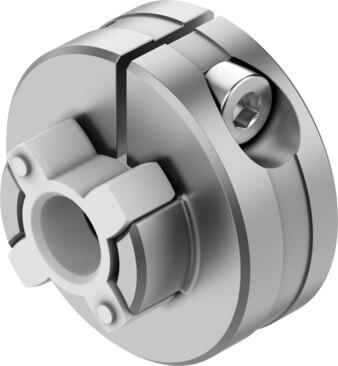

Coupling hub EAMC-H-25-10-GB8-9
Engineered by Festo, this industrial component features a 9 mm diameter for holder 1, a size of 15/25, and a nominal length of 15.4 mm with any mounting position. It operates up to a maximum rotational speed of 10000 rpm, transferring a torque of 2 Nm while maintaining a mass moment of inertia of 1.04 kgmm² and a total product weight of 13 g. The unit adheres to VDMA24364-B2-L LABS conformity and RoHS material directives, functioning within ambient and storage temperature ranges of -25 °C to 60 °C and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228651
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228651.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 9 mm
- Size
- 15/25
- Nominal length
- 15.4 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 1.04 kgmm²
- Transferable torque
- 2 Nm
- Product weight
- 13 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8228651. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
