Festo
8228652

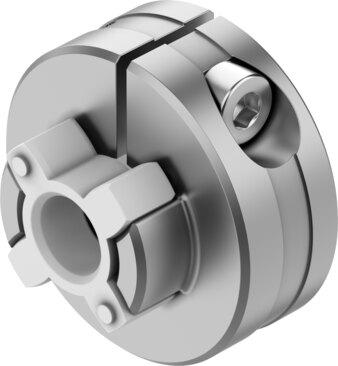

Coupling hub EAMC-H-25-10-GB8-11
The Festo industrial component, part number 8228652, features a size of 15/25, a nominal length of 15.4 mm, and a holder 1 diameter of 11 mm with a mass moment of inertia of 1.04 kgmm². This unit supports a maximum rotational speed of 10000 rpm, a transferable torque of 2 Nm, an ambient and storage temperature range of -25 °C to 60 °C, relative air humidity from 0 to 95%, and VDMA24364-B2-L LABS conformity with RoHS compliant materials at a product weight of 12 g for installation in any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228652
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228652.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 11 mm
- Size
- 15/25
- Nominal length
- 15.4 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 1.04 kgmm²
- Transferable torque
- 2 Nm
- Product weight
- 12 g
- Note on materials
- RoHS compliant
