Festo
8228653

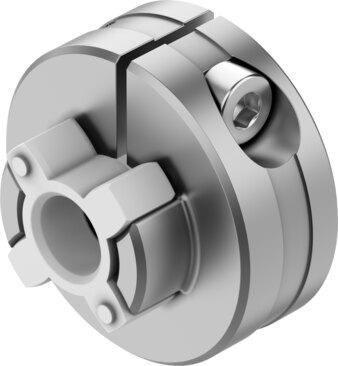

Coupling hub EAMC-H-25-10-GB8-14
This Festo industrial component, part number 8228653, features a holder 1 diameter of 14 mm, a size of 15/25, and a nominal length of 15.4 mm with a product weight of 11 g. Designed for any mounting position, it delivers a transferable torque of 2 Nm and supports a maximum rotational speed of 10000 rpm alongside a mass moment of inertia of 1.04 kgmm². The unit complies with VDMA24364-B2-L LABS conformity and RoHS material restrictions while operating within storage and ambient temperature ranges of -25 °C to 60 °C at 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228653
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228653.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 14 mm
- Size
- 15/25
- Nominal length
- 15.4 mm
- Mounting position
- Any
- Max. rotational speed
- 10000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 1.04 kgmm²
- Transferable torque
- 2 Nm
- Product weight
- 11 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8228653. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
