Festo
8228655

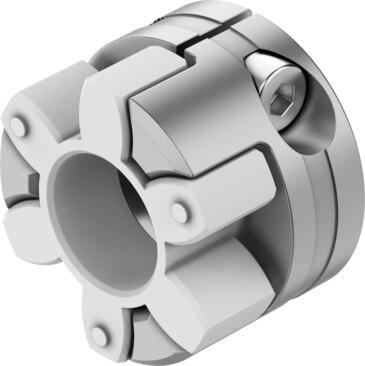

Coupling hub EAMC-H-30-10-GB16-8
The Festo part number 8228655 is an industrial component featuring a size 30 designation with an 8 mm diameter for holder 1 and a nominal length of 20.7 mm. Weighing 26 g, this RoHS-compliant unit accommodates any mounting position, supports a maximum rotational speed of 8000 rpm, delivers a transferable torque of 7.5 Nm, and possesses a mass moment of inertia of 3.2 kgmm² alongside VDMA24364-B2-L LABS conformity. It operates and is stored within a temperature range of -25 °C to 60 °C and handles relative air humidity from 0 to 95%. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228655
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228655.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 8 mm
- Size
- 30
- Nominal length
- 20.7 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 7.5 Nm
- Product weight
- 26 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8228655. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
