Festo
8228657

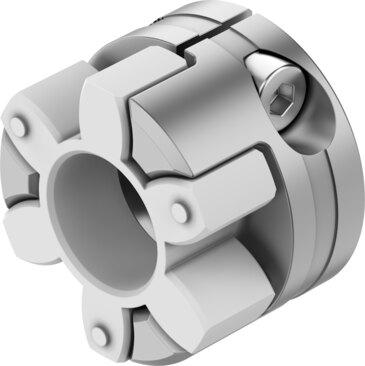

Coupling hub EAMC-H-30-10-GB16-10
The Festo industrial component, part number 8228657, features a size 30 design with a 10 mm diameter holder 1 and a nominal length of 20.7 mm. This RoHS compliant part weighs 25 g, accommodates any mounting position, and operates at a maximum rotational speed of 8000 rpm while transferring up to 9.5 Nm of torque with a mass moment of inertia of 3.2 kgmm². It conforms to VDMA24364-B2-L LABS (PWIS) standards and functions within an ambient and storage temperature range of -25 °C to 60 °C alongside 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228657
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228657.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 10 mm
- Size
- 30
- Nominal length
- 20.7 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 9.5 Nm
- Product weight
- 25 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8228657. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
