Festo
8228659

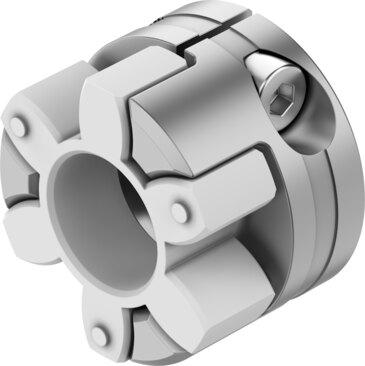

Coupling hub EAMC-H-30-10-GB16-12
The Festo industrial component, part number 8228659, features a holder diameter of 12 mm, a size 30 specification, and a nominal length of 20.7 mm with an overall product weight of 24 g. This RoHS-compliant part supports any mounting position, accommodates a maximum rotational speed of 8000 rpm, delivers a transferable torque of 11.5 Nm, and possesses a mass moment of inertia of 3.2 kgmm² alongside VDMA24364-B2-L LABS conformity. It operates and is stored within ambient and storage temperatures ranging from -25 °C to 60 °C and handles relative air humidity levels of 0 to 95%. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228659
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228659.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 12 mm
- Size
- 30
- Nominal length
- 20.7 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 3.2 kgmm²
- Transferable torque
- 11.5 Nm
- Product weight
- 24 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8228659. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
