Festo
8228661

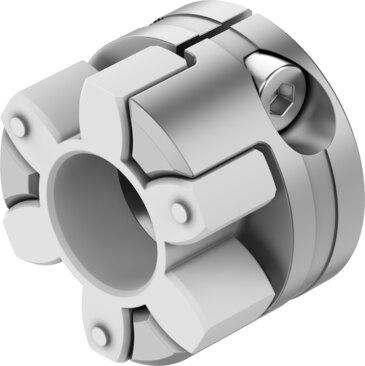

Coupling hub EAMC-H-35-13-GB16-19
The Festo 30/35 industrial component features a 19 mm holder diameter, a nominal length of 23.4 mm, and a product weight of 31 g with RoHS compliance and VDMA24364-B2-L LABS conformity. It supports an ambient and storage temperature range of -25 °C to 60 °C, relative air humidity between 0 and 95%, and any mounting position. Capable of a maximum rotational speed of 8000 rpm, this part delivers a transferable torque of 15 Nm and a mass moment of inertia of 5.8 kgmm². Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8228661
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8228661.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 19 mm
- Size
- 30/35
- Nominal length
- 23.4 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 5.8 kgmm²
- Transferable torque
- 15 Nm
- Product weight
- 31 g
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8228661. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
