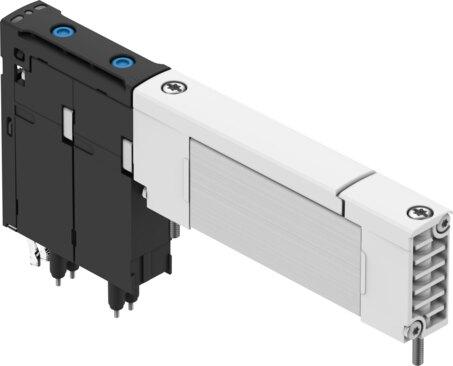

Reference imageConfirm configuration by manufacturer part number.
Festo
8229211
Solenoid valve VUVX-BK10-P54CV-MZH-F-1T1L
The Festo 8229211 is a 10 mm electrical 5/4-way valve featuring a holding function specifically for vacuum generators, utilizing a piston slide structural design with a soft sealing principle and a mechanical spring reset. This piloted component operates at 24V DC with an operating pressure range of -0.09 MPa to 0.7 MPa, delivering a standardized nominal flow rate of 340 l/min according to ISO 8778 and an IP65 degree of protection. Additional integrated features include an adjustable exhaust air function, non-detenting manual override, external pilot air supply port, and a signal status display. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8229211
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8229211.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/4-way valve, with holding function, for vacuum generator
- Actuation type
- Electrical
- Valve size
- 10 mm
- Nominal ow rate standardized according to ISO 8778
- 340 l/min
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...0.7 MPa | -0.9 bar...7 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring
- Degree of protection
- IP65
- Width
- 10.35 mm
- Nominal width
- 2.7 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Signal status display
- Yes
- Pilot pressure MPa
- 0.25 MPa...0.7 MPa
- Pilot pressure
- 2.5 bar...7 bar
- Suitability for vacuum
- Yes
- b-value
- 0.44
- C value
- 1.2 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 40 ms
- On switching time
- 12 ms
- Changeover time
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1400 µs
- Max. negative test pulse on 1 signal
- 800 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8229211. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
