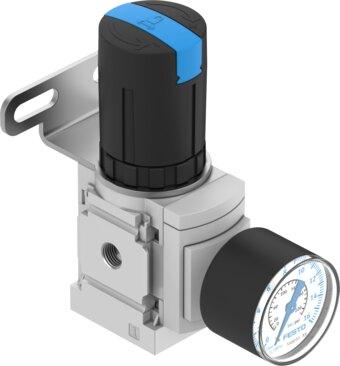

Reference imageConfirm configuration by manufacturer part number.
Festo
8229687
Pressure regulator MS4-LR-1/8-D7-PAGN-AS-WR
The Festo size 4 industrial component from the MS series is a directly controlled diaphragm regulator featuring a constant output pressure, secondary exhausting, and a return flow characteristic. Operating within a pressure range of 0.8 bar to 14 bar and providing a normal nominal flow rate of 1000 l/min, this unit utilizes a rotary knob actuator lock with detent that can be closed with accessories. It accommodates compressed air per ISO 8573-1:2010 [7:4:4] or inert gases, maintains a moderate corrosion stress rating of CRC 2, and weighs 225 g with flexible mounting options including in-line installation, front panel mounting, or use with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8229687
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8229687.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent | can be closed with accessories
- Mounting position
- Any
- Structural design
- Directly controlled diaphragm regulator
- Controller function
- Constant output pressure | With secondary exhausting | With return ow characteristic
- Pressure gauge
- Set up for G1/4
- Operating pressure
- 0.08 MPa...1.4 MPa | 0.8 bar...14 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.025 MPa | 0.25 bar | 3.625 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 °C...60 °C
- For use in the food industry
- See supplementary material information
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 225 g
- Type of mounting
- Alternatively: | Front panel mounting | In-line installation | With accessories
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8229687. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
