Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8230175

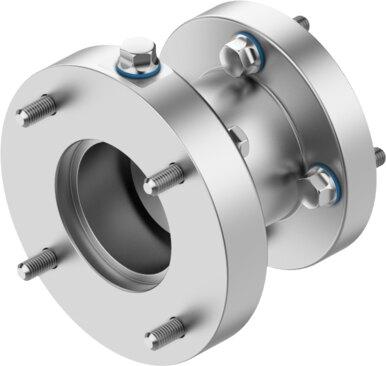

Axial kit EAMM-A-C42-6-80CA-S5
The Festo part number 8230175 is an industrial component featuring a 1:1 gear ratio, a nominal length of 58 mm, and a transferable torque of 6.5 Nm with a maximum rotational speed of 8000 rpm. This unit weighs 1140 g, incorporates a mass moment of inertia of 5.87 kgmm², and utilizes a C42-6 actuator interface code along with an 89CA motor-in interface code. Constructed to meet VDMA24364 Zone III LABS conformity with RoHS-compliant materials, it features an IP69K degree of protection for operation in ambient temperatures from -10 °C to 60 °C, relative air humidity from 0 to 100%, and storage temperatures between -25 °C and 60 °C in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230175
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230175.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 58 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 1140 g
- Interface code, actuator
- C42-6
- Interface code, motor in
- 89CA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230175. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
