Festo
8230176

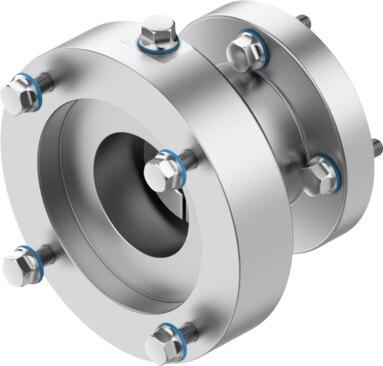

Axial kit EAMM-A-C42-6-89CA-S5
The Festo 8230176 industrial component features a 1:1 gear ratio, a nominal length of 60.5 mm, and a product weight of 670 g with a mass moment of inertia of 5.87 kgmm². This unit delivers a transferable torque of 6.5 Nm at a maximum rotational speed of 8000 rpm, supported by IP69K ingress protection, VDMA24364 Zone III LABS conformity, and RoHS-compliant materials. It operates within ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and 0 to 100% relative air humidity while utilizing a C42-8 actuator interface code and a 68C motor-in interface code in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230176
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230176.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 60.5 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 670 g
- Interface code, actuator
- C42-8
- Interface code, motor in
- 68C
- Note on materials
- RoHS compliant
