Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

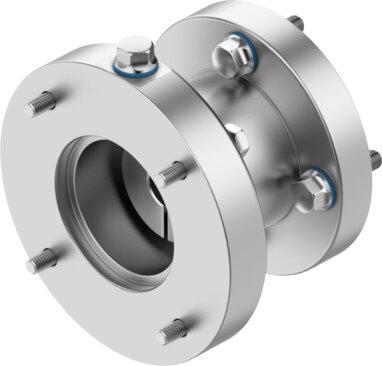

Reference imageConfirm configuration by manufacturer part number.
Festo
8230177
Axial kit EAMM-A-C42-8-79CB-S5
The Festo industrial component, part number 8230177, is a 1:1 gear ratio unit featuring a nominal length of 54 mm, a product weight of 800 g, and a mass moment of inertia of 5.87 kgmm². Engineered with an IP69K degree of protection and VDMA24364 Zone III LABS conformity, this RoHS compliant device supports a transferable torque of 6.5 Nm and a maximum rotational speed of 8000 rpm across any mounting position. It operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 100% relative air humidity, utilizing a C42-8 actuator interface code and a 78CB motor-in interface code. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230177
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230177.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 54 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 6.5 Nm
- Product weight
- 800 g
- Interface code, actuator
- C42-8
- Interface code, motor in
- 78CB
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230177. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
