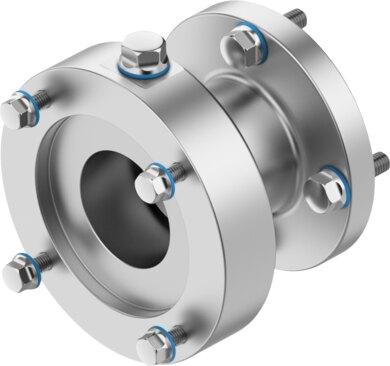

Reference imageConfirm configuration by manufacturer part number.
Festo
8230182
Axial kit EAMM-A-C50-10-89CA-S5
The Festo 8230182 is an industrial component featuring a nominal length of 64.2 mm, a 1:1 gear ratio, and a mass moment of inertia of 5.87 kgmm². This unit supports a maximum rotational speed of 8000 rpm, a transferable torque of 12.5 Nm, and an actuator interface code of C50-10 alongside a motor-in interface code of 89CA. Certified with VDMA24364 Zone III LABS conformity and an IP69K degree of protection, it operates within an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 100% relative air humidity. Weighing 1290 g with RoHS-compliant materials, the assembly accommodates any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230182
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230182.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 64.2 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 5.87 kgmm²
- Transferable torque
- 12.5 Nm
- Product weight
- 1290 g
- Interface code, actuator
- C50-10
- Interface code, motor in
- 89CA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230182. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
