Festo
8230189

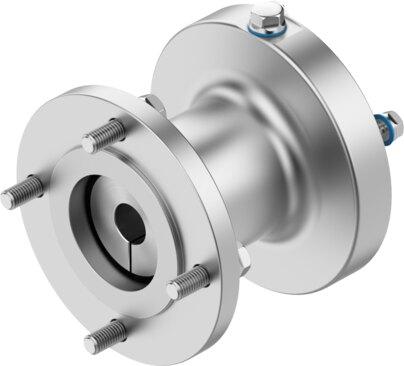

Axial kit EAMM-A-C68-16-110CA-S5
The Festo part number 8230189 is an industrial component featuring a nominal length of 88.2 mm, a 1:1 gear ratio, and a transferable torque of 21 Nm with a mass moment of inertia of 34.8 kgmm². Built with an IP69K degree of protection and VDMA24364 Zone III LABS conformity, this RoHS-compliant unit supports a maximum rotational speed of 6500 rpm, operates within an ambient temperature range of -10 °C to 60 °C, and accommodates any mounting position with a product weight of 2220 g. It utilizes a C68-16 actuator interface code and a 110CA motor input interface code, while withstanding storage temperatures from -25 °C to 60 °C and 0 to 100% relative air humidity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230189
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230189.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 88.2 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 2220 g
- Interface code, actuator
- C68-16
- Interface code, motor in
- 110CA
- Note on materials
- RoHS compliant
