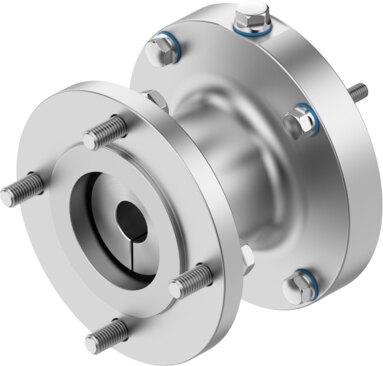

Reference imageConfirm configuration by manufacturer part number.
Festo
8230191
Axial kit EAMM-A-C68-16-114CC-S5
The Festo 8230191 is an industrial component featuring a 1:1 gear ratio, a 78.2 mm nominal length, and a 2160 g product weight with RoHS-compliant materials. It supports any mounting position, a 6500 rpm maximum rotational speed, a 34.8 kgmm² mass moment of inertia, and a 21 Nm transferable torque alongside an IP69K degree of protection, VDMA24364 Zone III LABS conformity, and an actuator interface code of C68-16 with a motor input interface code of 114CC. Operating conditions span an ambient temperature range of -10 °C to 60 °C, a storage temperature range of -25 °C to 60 °C, and 0 to 100% relative air humidity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230191
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230191.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 78.2 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 2160 g
- Interface code, actuator
- C68-16
- Interface code, motor in
- 114CC
- Note on materials
- RoHS compliant
