Festo
8230192

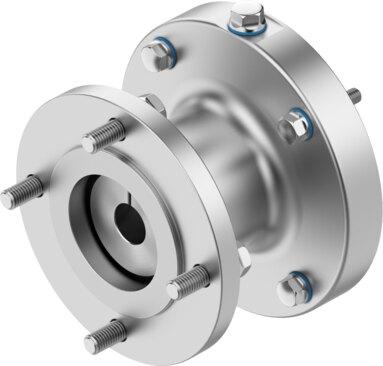

Axial kit EAMM-A-C68-16-120CA-S5
The Festo industrial component, part number 8230192, features a 1:1 gear ratio, a nominal length of 78.2 mm, and a mass moment of inertia of 34.8 kgmm² with a product weight of 2510 g. This RoHS compliant unit delivers a transferable torque of 21 Nm at a maximum rotational speed of 6500 rpm, utilizing actuator interface code C68-16 and motor input interface code 120CA. Protected by an IP69K rating and conforming to VDMA24364 Zone III LABS standards, it operates within an ambient temperature range of -10 °C to 60 °C, supports 0 to 100% relative air humidity, permits storage temperatures from -25 °C to 60 °C, and accommodates any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230192
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230192.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 78.2 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 34.8 kgmm²
- Transferable torque
- 21 Nm
- Product weight
- 2510 g
- Interface code, actuator
- C68-16
- Interface code, motor in
- 120CA
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8230192. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
