Festo
8230195

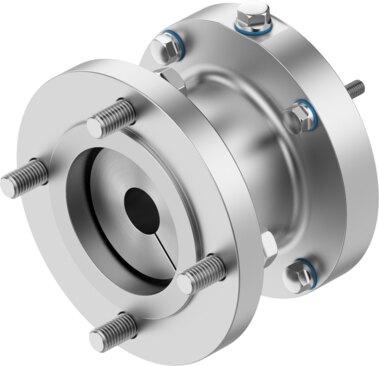

Axial kit EAMM-A-C80-19-114CC-S5
Engineered by Festo with a 1:1 gear ratio and a nominal length of 77.5 mm, this industrial component supports a maximum rotational speed of 5500 rpm and a transferable torque of 60 Nm. The unit features an actuator interface code of C80-19, a motor-in interface code of 114CC, a mass moment of inertia of 128 kgmm², and a product weight of 2600 g with RoHS-compliant materials. It provides IP69K degree of protection, VDMA24364 Zone III LABS conformity, and operates in ambient temperatures from -10 °C to 60 °C within 0 to 100% relative air humidity while supporting any mounting position and storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8230195
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8230195.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 77.5 mm
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 100%
- Degree of protection
- IP69K
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 128 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 2600 g
- Interface code, actuator
- C80-19
- Interface code, motor in
- 114CC
- Note on materials
- RoHS compliant
